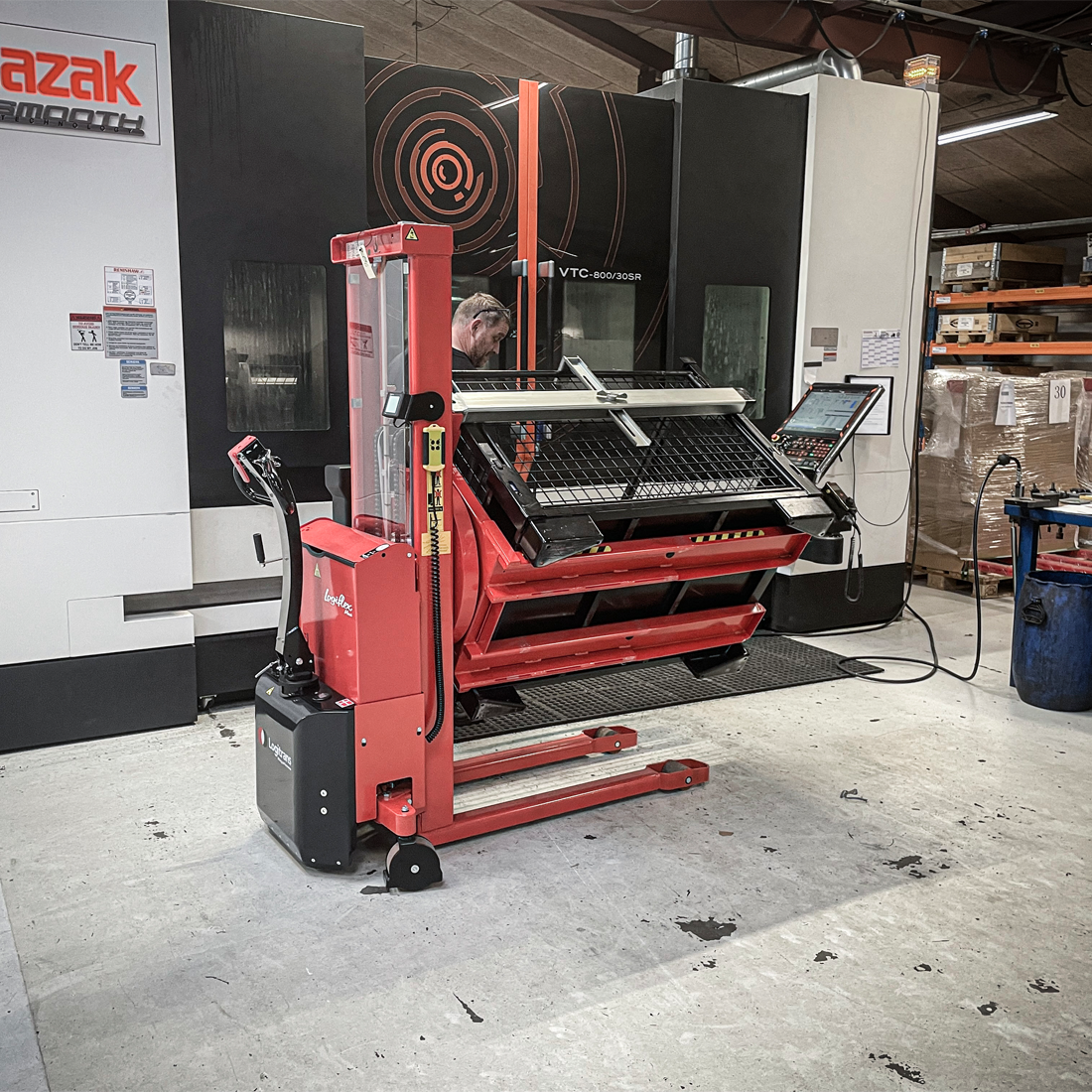

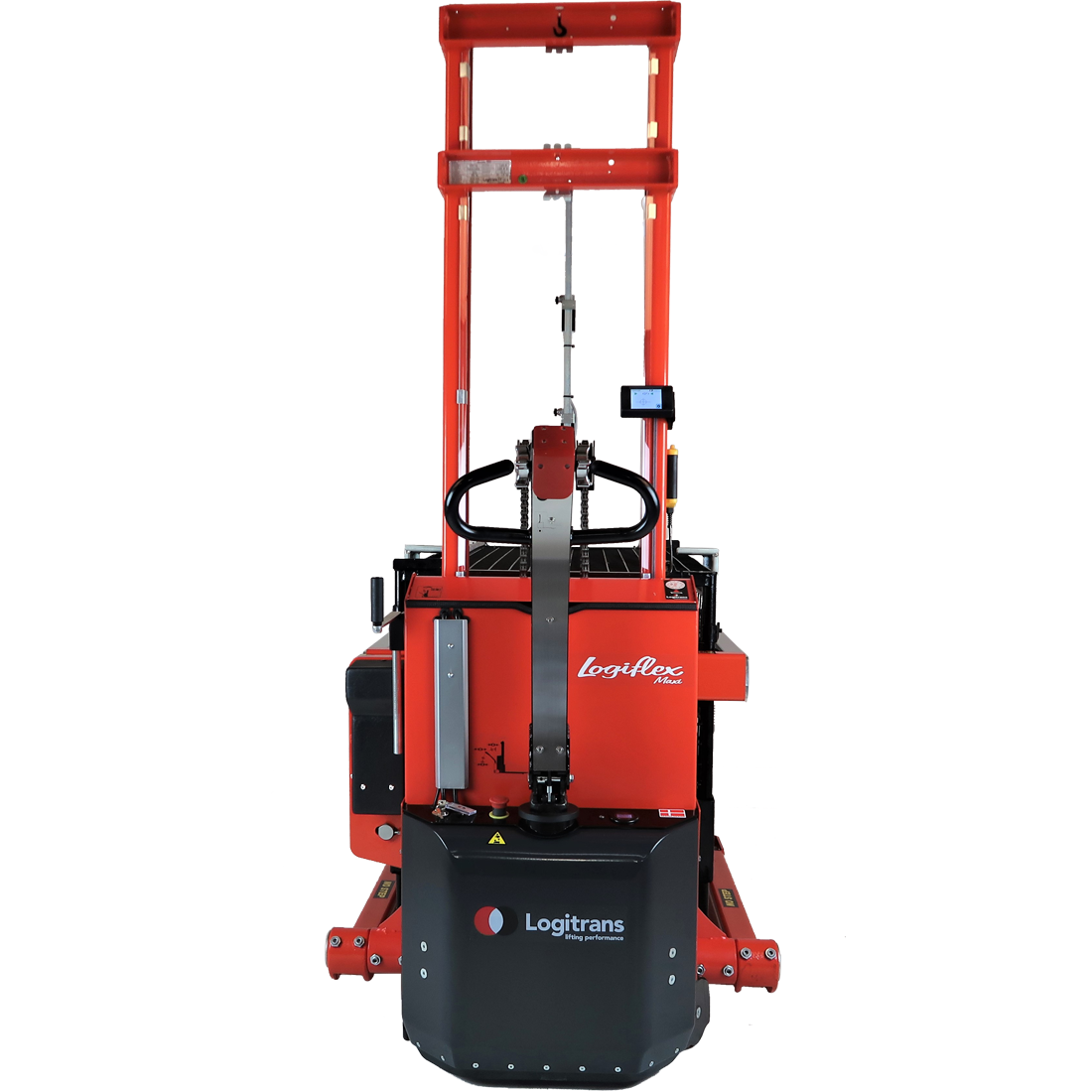

Rotator with adjustable box holders
Optimizes the working condition - focus on safety!
The Material Handling Rotator with adjustable box holders is a unique and flexible solution for companies, requiring handling of boxes with different widths.

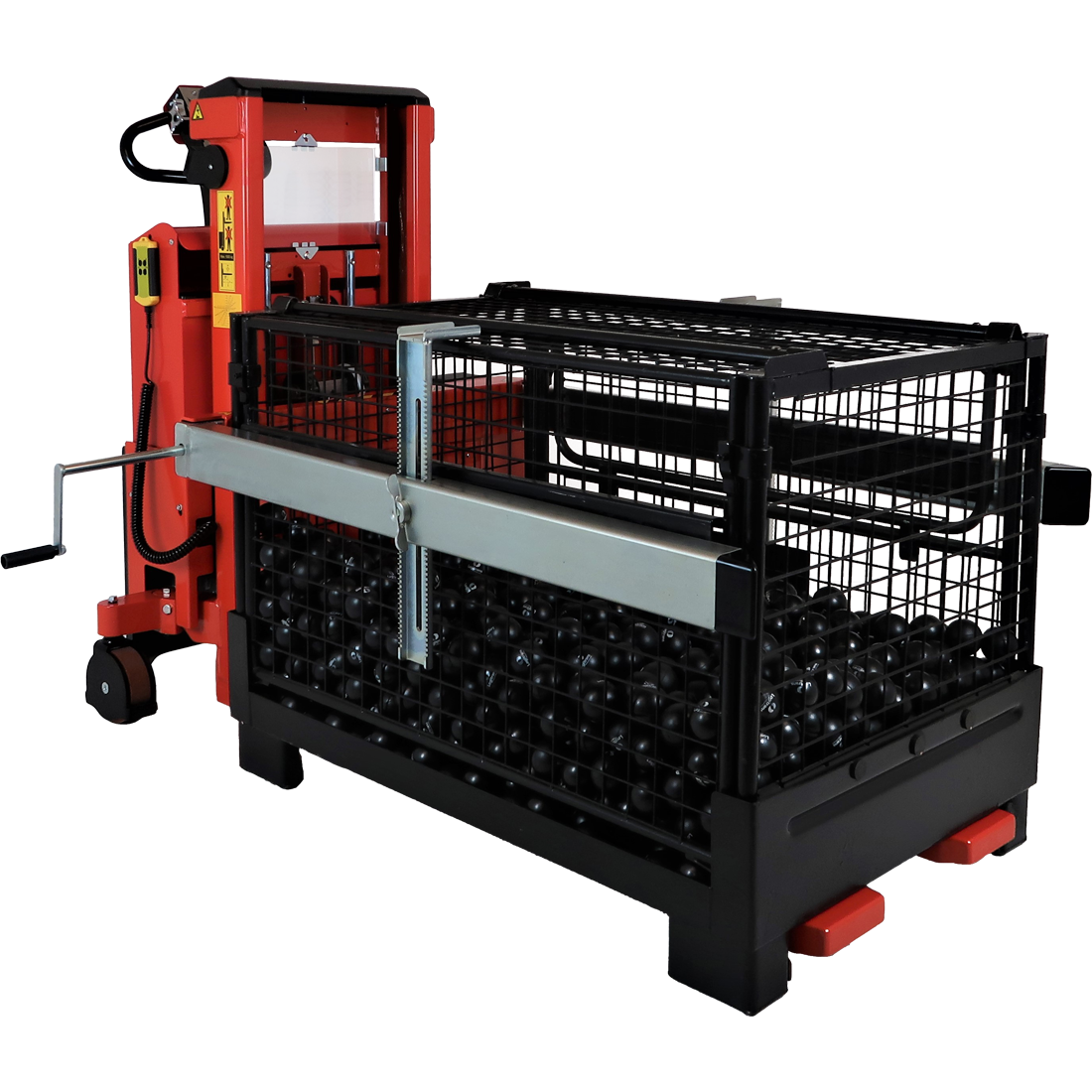

The width of the box holders is adjusted by a handle, so that the width fits the different box sizes (widths between 31.5” and 48”).

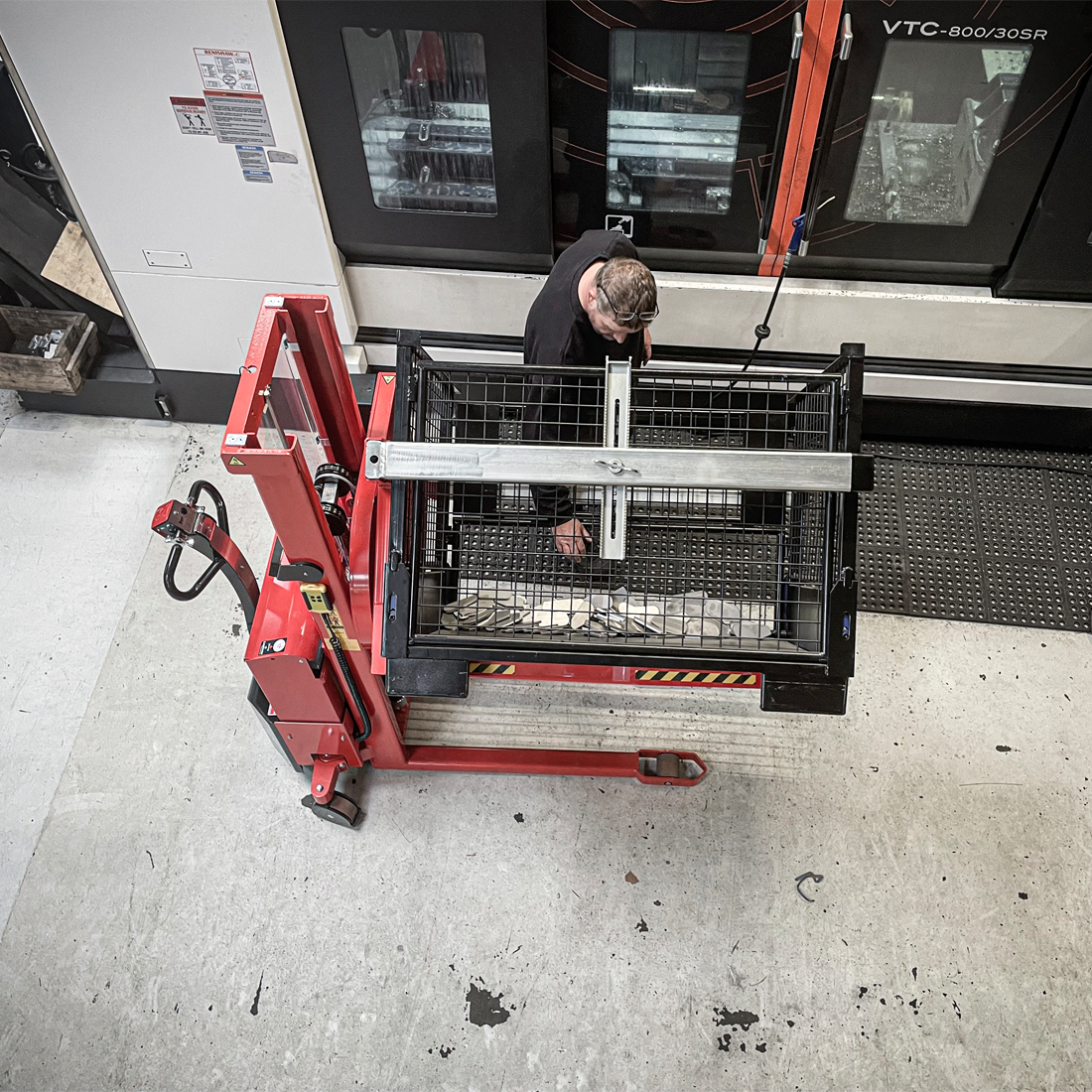

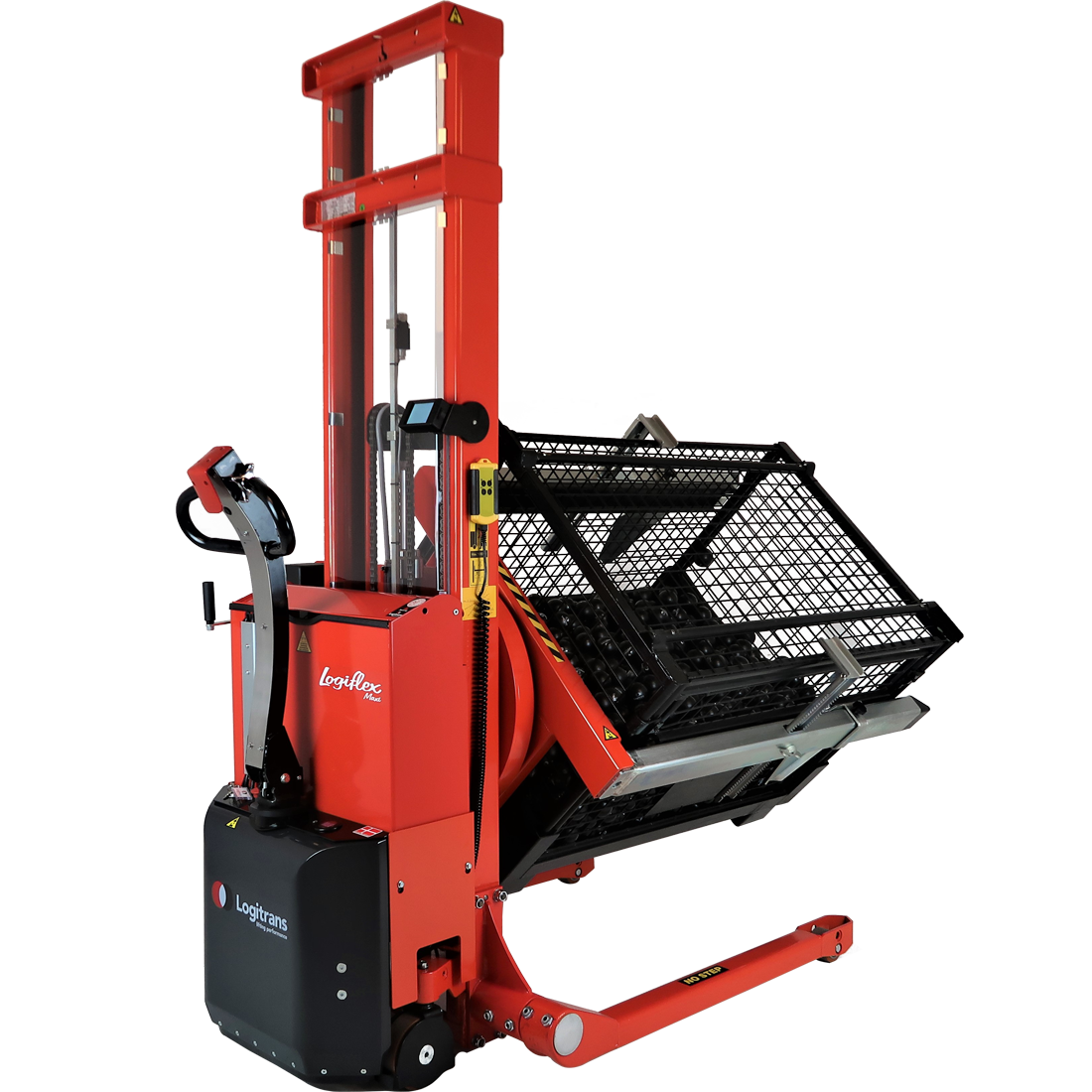

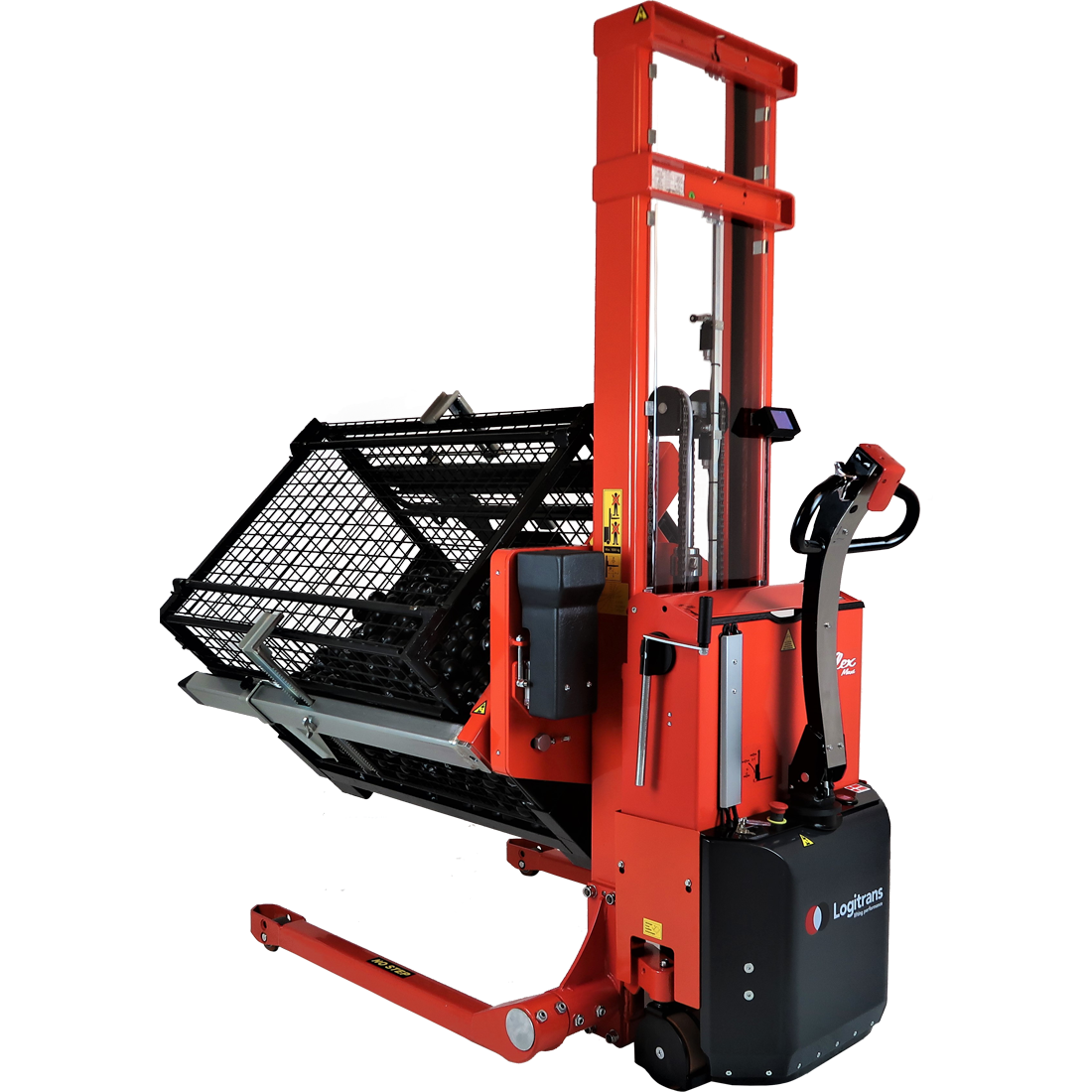

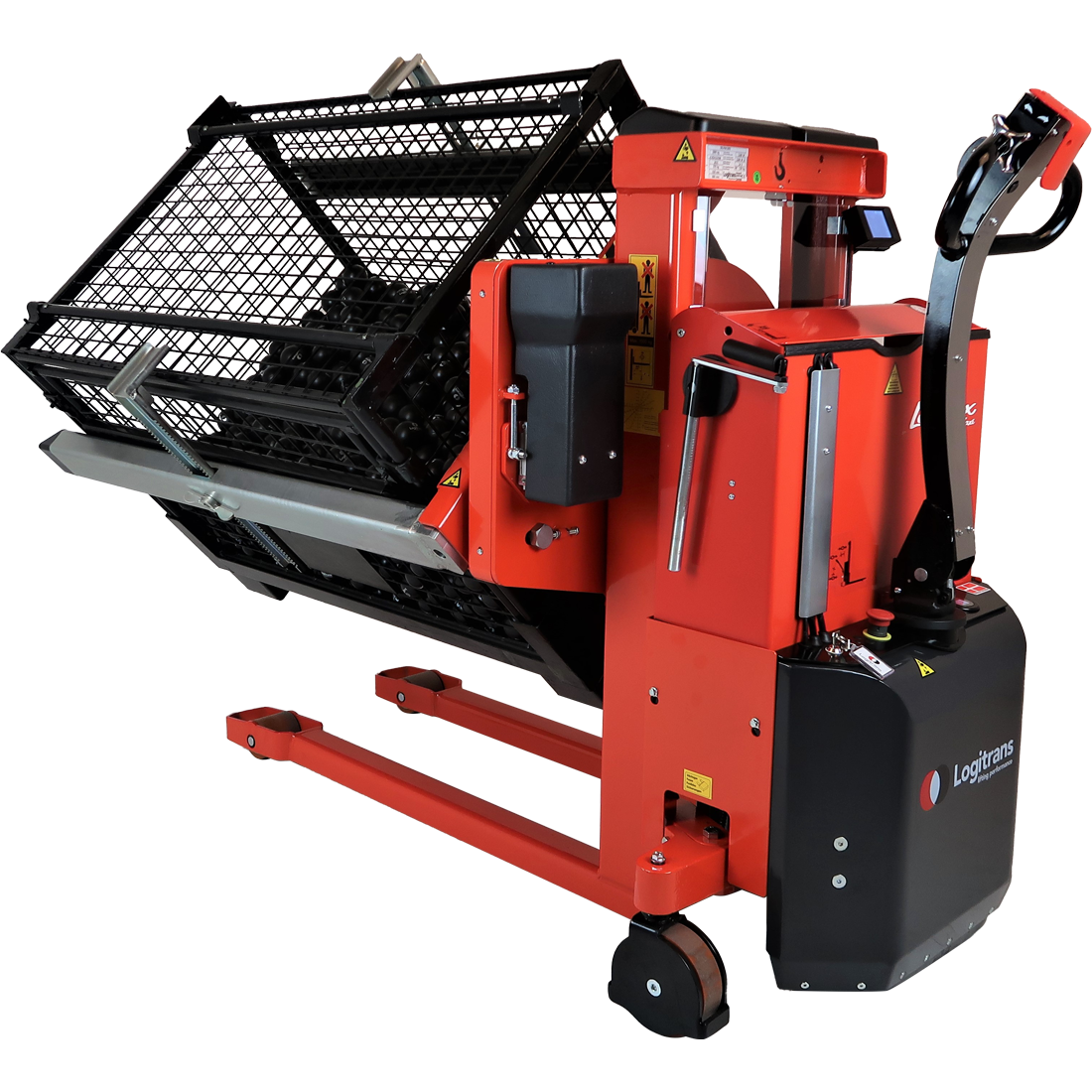

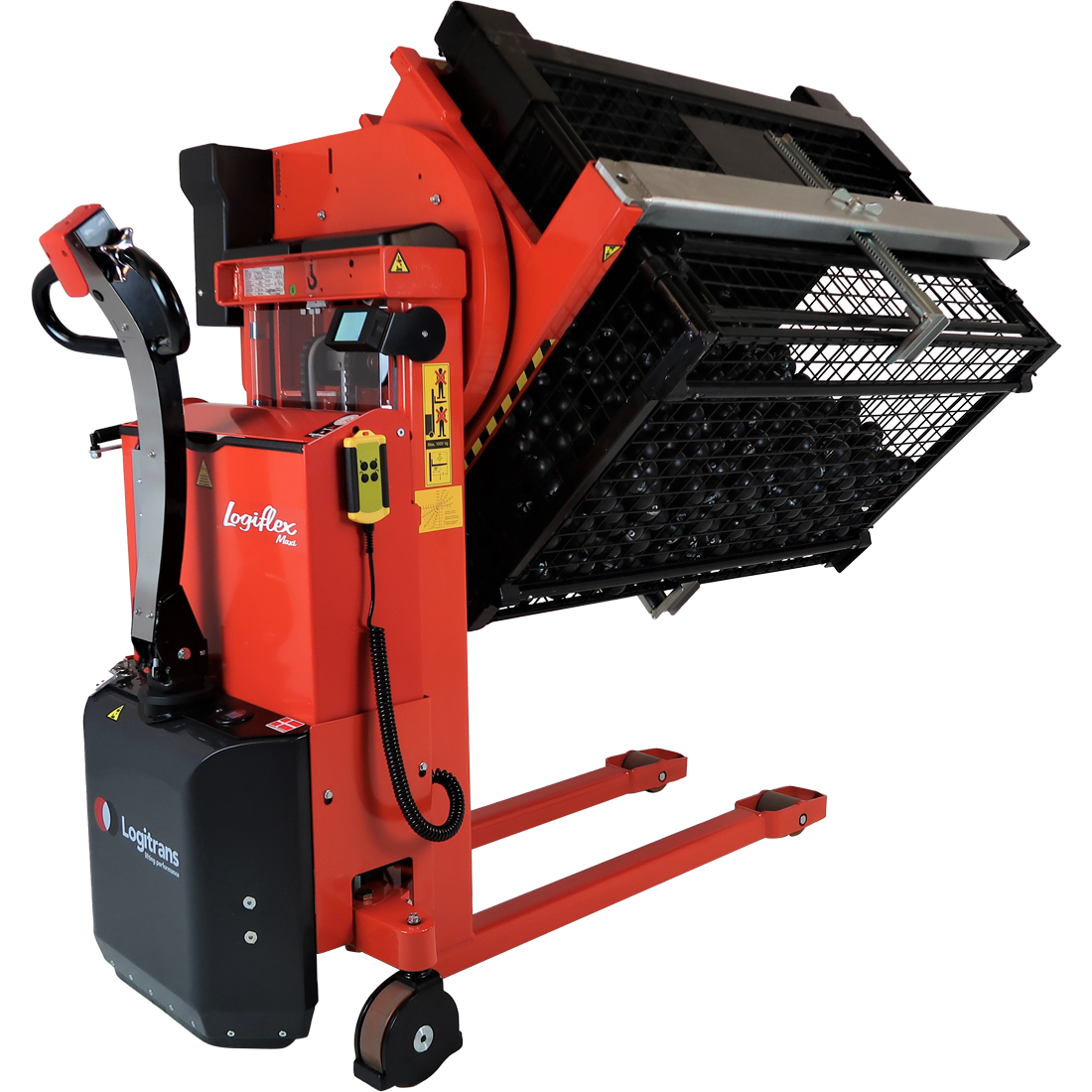

The Material Handling Rotator with adjustable box holders can tilt crates and boxes so that the user can reach the contents without stretching, bending and straining the back.
One box holder can manage 2200 lbs, also when tilting more than 90°.
OPTIONAL EXTRAS
- Depending on the type and weight of the box and the working situation the following can be chosen:
Clamp which hold boxes of heights between 25” and 37.5”, when tilted (also 180°). Clamps are recommended when tilting more than 60°
- Side support plates
DURABILITY
- Low maintenance costs - no relays and wearing parts
SAFETY
- Tilting function is deactivated when the rotation center is more than 46,50" or less than 27" above the floor.
EFFICIENCY AND FLEXIBILITY
- Height adjustment, rotation and transportation in the same unit
- Easy to set degree of tilt and rotation speed
- Precise and controlled acceleration/deceleration on rotation at start/stop
- Tilting function is deactivated automatically, when rotating to neutral position
- Remote control for rotation/lifting/lowering (with cable as standard/wireless as optional extra)

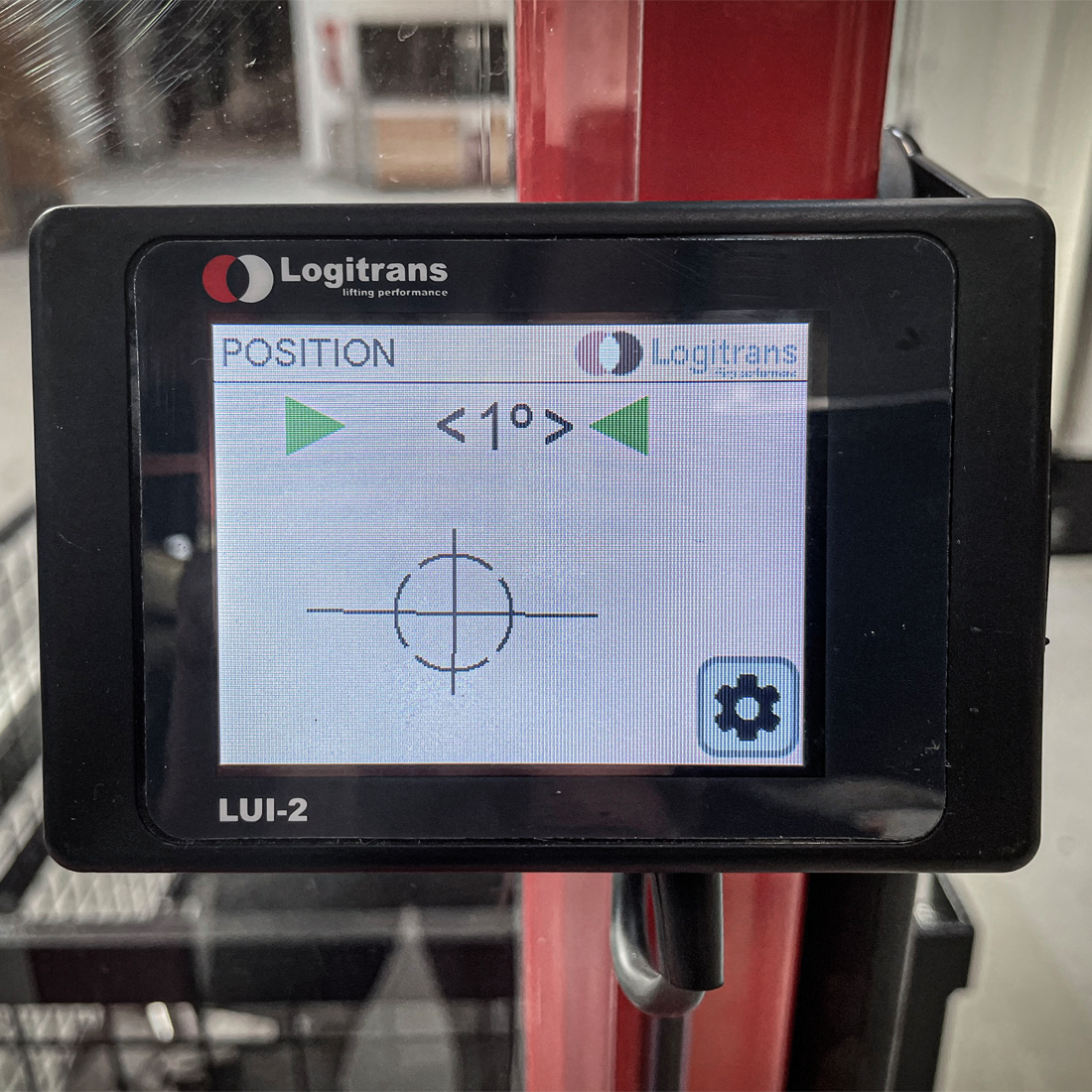

DIGITAL CONTROLLER
- Large display – easy to use, easy visual presentation, touch screen
- Possible to program e.g. several stops, turning angle, speed, rotation
- Log function, e.g. operational time, current consumption, number of operations, overload registration, battery status
- Shows error messages and actual position/turning angle
- Supervisor function can be activated to lock the settings
