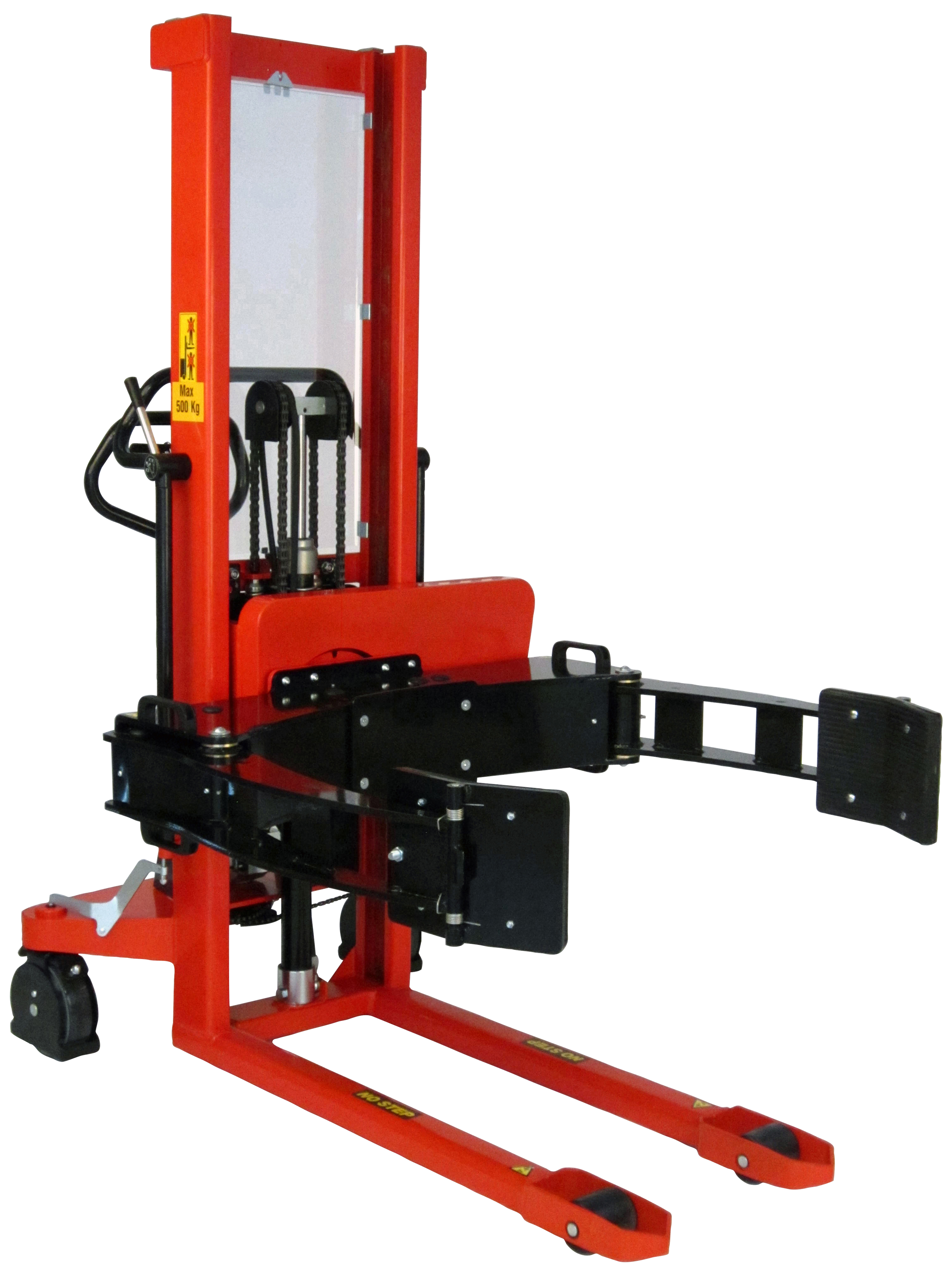

Manual Reel Rotator - fork over

Lifting and rotating reels

If you need to lift and rotate reels, the manual reel rotator is a good choice!

It is compact, very manoeuvrable and has an ergonomically correct handle, which ensures the user a proper grip and working conditions.

The reel rotator is also available in an electric and fully powered version, which is a better choice for more frequent lift and rotation, and for transporting.

EFFICIENCY AND FLEXIBILITY

  • Capacity 1,100 lbs
  • Handles vertical reels (eye-to-sky) placed on the floor or on a pallet and horizontal (eye-to-horizon) that are clear off the floor
  • Handles reel diameters from Ø4.7” to Ø50” (gripping arms can open 51”)
  • Manages soft as well as smooth and hard reels
  • Available with straddle legs.

SAFETY

  • None of the models can open the gripping arms by mistake
  • The reels can only be released, when placed on floor or pallet
  • The reel is fixed with gripping arms
  • The gripping arms have rubber-covered gripping pads to achieve the largest friction and to ensure a gentle grip
  • On models with electric rotation, it is only possible to rotate at lifting heights above 32.5”, so the gripping arms will not collide with the floor or legs.

FACTS

LFRRM 1001 (fully manual)

  • The tilt degree can be set for every 90° (with a locking system)
  • Two lifting speeds: Normal and quick
  • Two speeds for clamping
  • Steering on both wheels

DURABILITY

  • Strong construction
  • Long operating life
  • Low maintenance costs
