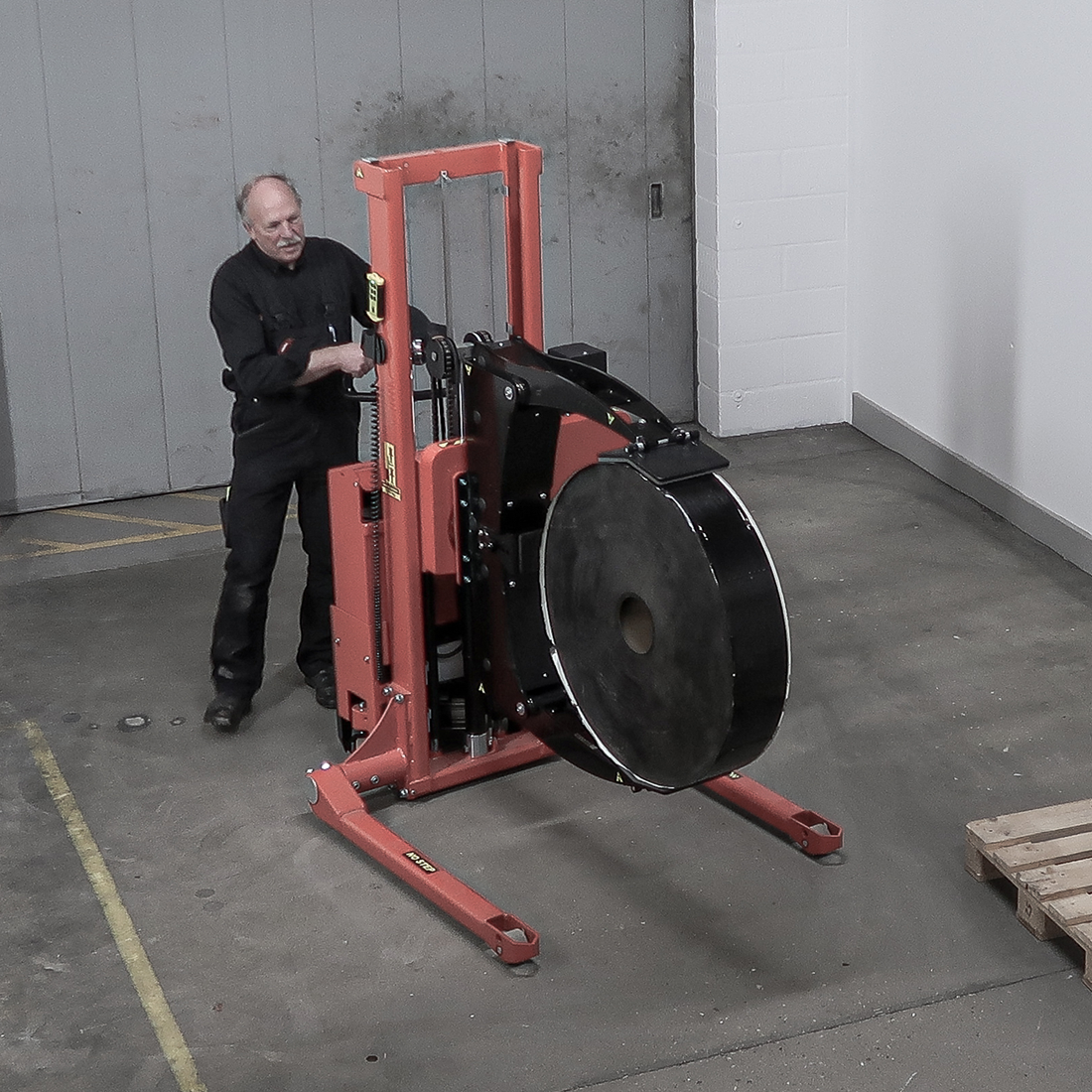

Electric Reel Rotator with straddle legs

Transporting, lifting and rotating heavy reels from all pallet types

If you need to transport, lift or rotate heavy reels, e.g. placed on closed pallets, the electric reel rotator with straddle legs is a good match for you. It can grab and place reels placed on all types of pallets.

It is compact, very manoeuvrable, and ensures proper working conditions with the ergonomically correct handle and the electrical operation.

The electric reel rotator has electric lifting and clamping, manual propulsion and comes with electric rotation (ELFRRE 1001), or manual rotation (ELFRRM 1001)

The reel rotator with straddle legs is also available in a manual and fully powered version.

EFFICIENCY AND FLEXIBILITY

  • Capacity 500 kg

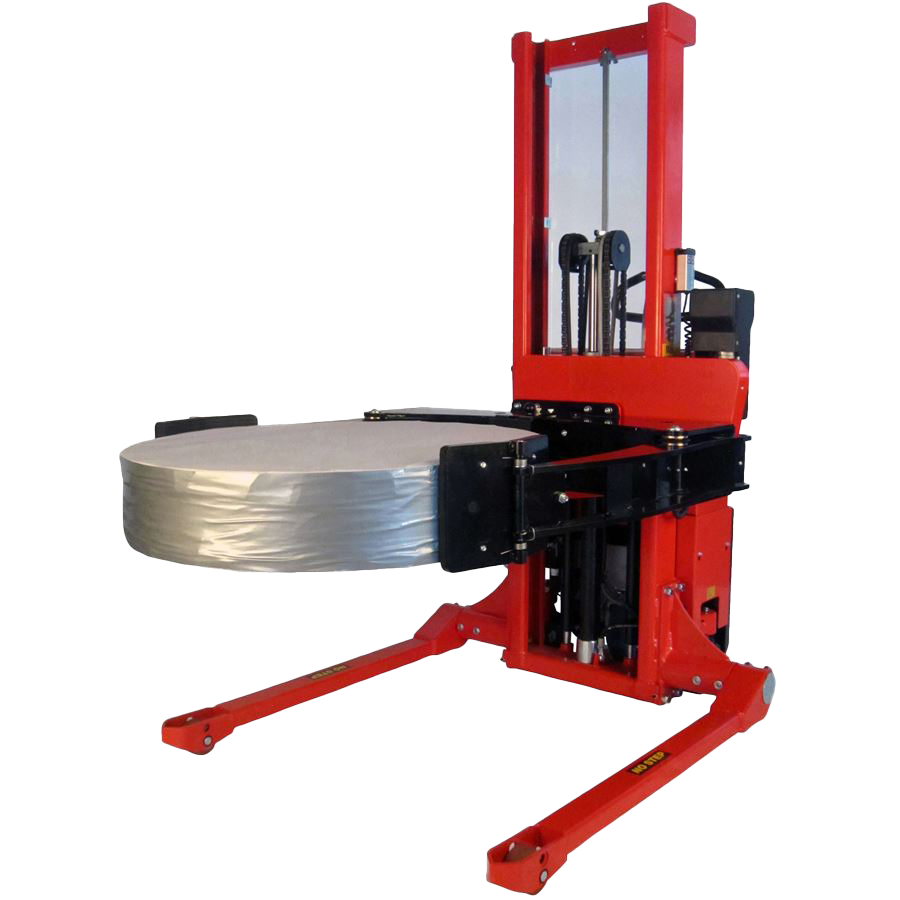

  • Handles vertical reels (eye-to-sky) placed on the floor or on a pallet and horizontal (eye-to-horizon) that are clear off the floor

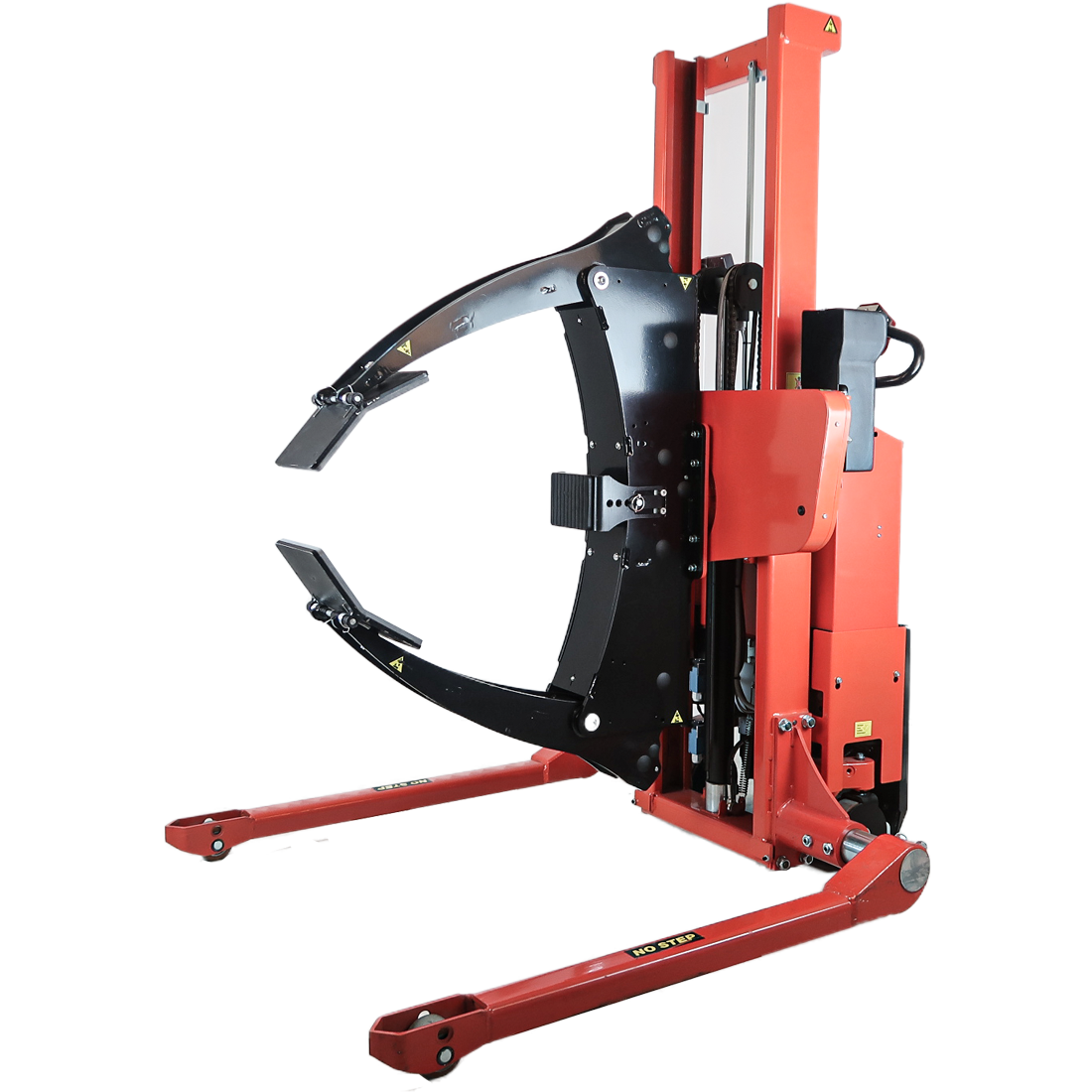

  • Handles reel diameters from Ø120 mm to Ø1270 mm (gripping arms can open 1300 mm)
  • Manages soft as well as smooth and hard reels
  • Also available without straddle legs

SAFETY

  • None of the models can open the gripping arms by mistake
  • The reels can only be released, when placed on floor or pallet
  • The reel is fixed with gripping arms
  • The gripping arms have rubber-covered gripping pads to achieve the largest friction and to ensure a gentle grip
  • On models with electric rotation, it is only possible to rotate at lifting heights above 750 mm, so that the gripping arms cannot touch floor or legs.

DURABILITY

  • Strong construction
  • Long operating life
  • Low maintenance costs

DIGITAL CONTROLLER

  • Large display – easy to use, easy visual presentation, touch screen
  • Possible to program e.g. several stops, turning angle, speed, rotation
  • Log function, e.g. operational time, current consumption, number of operations, overload registration, battery status
  • Shows error messages and actual position/turning angle
  • Supervisor function can be activated to lock the settings

FACTS

ELFSRRM 1001 (electric lifting and fastening, manual rotation and propulsion)

  • The tilt degree can be set for every 90° (with a locking system)
  • Remote control for clamping
  • Positioning valve available (precise and quiet positioning of the load)

ELFSRRE 1001 (electric lifting, fastening and rotation, manual propulsion)

  • Programmable tilt degree and rotation speed
  • Light indicator when reel is fastened
  • Controlled rotation start/stop
  • Remote controls for reel rotation and clamping
  • Positioning valve available (precise and quiet positioning of the load)
